Interpretation Equipment

Below is a detailed analysis of the various types of interpretation equipment available for rental, divided into three main categories: simultaneous interpreting equipment, conference audio equipment, and web conference equipment.

1. Simultaneous Interpreting Equipment

Simultaneous interpreting involves real-time translation, typically used in conferences, seminars, and large meetings. The key rental equipment includes:

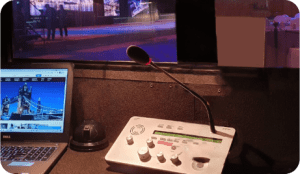

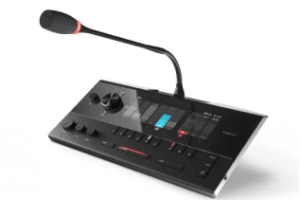

Interpreter Console

An interpreter console is the primary tool used by interpreters to select language channels, control volume, and manage microphone settings. Features often include:

• Multiple Channel Selectors: Allows interpreters to switch between different language channels.
• Mute Buttons: Provides the option to mute the microphone when not speaking.
• Volume Control: Adjustable audio levels for optimal listening.
• Dual Interpreter Operation: Supports two interpreters working simultaneously.
• Relay Function: Enables interpreters to listen to another interpreter’s output before translating.

Technical Specifications:

• Channels: Up to 32 channels
• Power Supply: 100-240V AC
• Interface: XLR, RJ45
• Standards: ISO 20109 compliant

Soundproof Booths

Soundproof booths are critical to isolate interpreters from external noise, ensuring they can hear the original speech clearly. Specifications include:

• Acoustic Insulation: Ensures minimal external noise interference.
• Ventilation Systems: Keeps the booth comfortable for interpreters.
• Interior Lighting: Provides adequate lighting for reading and note-taking.
• Clear Sight Lines: Transparent panels for a clear view of the event stage or screen.

Technical Specifications:

• Dimensions: 1.6m x 1.6m x 2m (ISO standard)
• Sound Insulation: Up to 35 dB reduction
• Material: Double-glazed windows, sound-absorbing panels

Headsets and Microphones

High-quality headsets and microphones are necessary for clear audio input and output. Key features include:

• Noise-Cancelling Capabilities: Reduces background noise for clearer communication.
• Comfortable Ergonomic Design: Suitable for extended use.
• Clear and Crisp Audio Transmission: Ensures accurate interpretation.

Transmitters and Receivers

Transmitters send the interpreted audio to the audience, while receivers allow attendees to listen in their chosen language. Essential characteristics are:

• Multiple Channel Capacity: Supports several languages simultaneously.
• Long Battery Life: Ensures uninterrupted use during long events.
• Clear Signal Transmission: Maintains high-quality audio over a wide area.

Technical Specifications:

• Channels: Up to 40 channels
• Frequency Range: 2.3-2.8 MHz (Infrared), 863-865 MHz (UHF)
• Battery Life: 8-12 hours (rechargeable)
• Coverage: Up to 1,000 square meters

Infrared Systems

Infrared systems are used to transmit the interpreter’s voice to the audience wirelessly. They include:

• IR Radiators: Devices that emit infrared signals.
• IR Receivers: Handheld devices for the audience to receive the signal.
• Control Units: Manage the infrared transmission system.

Technical Specifications:

• Frequency Range: 2.3-2.8 MHz
• Coverage: Up to 1,000 square meters
• Channels: Up to 32 channels

FM Systems

FM systems use radio frequencies to transmit audio to listeners. They are ideal for larger venues and outdoor events. Components include:

• Transmitters: Broadcast the interpreter’s voice over FM radio frequencies.
• Receivers: Devices that attendees use to listen to the broadcast.
• Antennas: Enhance signal strength and coverage.

Technical Specifications:

• Frequency Range: 72-76 MHz, 216-217 MHz
• Channels: Up to 16 channels
• Coverage: Up to 300 meters

2. Conference Audio Equipment

For multilingual conferences, conference audio equipment must ensure that all participants can hear and be heard clearly. This category helps in hybrid setup & includes:

Conference Microphones

Conference microphones are used by speakers and attendees to contribute to discussions. Types include:

• Gooseneck Microphones: Flexible and adjustable for optimal positioning.
• Boundary Microphones: Placed on tables for group discussions.
• Wireless Microphones: Provides mobility for speakers.

Digital Conference Systems

Digital conference systems integrate microphones, speakers, and control units. Key features:

• Central Control Unit: Manages all audio inputs and outputs.
• Individual Microphone Units with Speakers: Provides clear audio for each participant.
• Voting and Polling Functions: Allows for interactive sessions.
• Integration with Interpretation Systems: Ensures seamless operation.

Technical Specifications:

• Channels: Up to 64 audio channels
• Connectivity: Wired/Wireless
• Interface: USB, Ethernet, XLR

Public Address Systems

Public address systems amplify sound for large venues. They include:

• Amplifiers: Boost audio signals.
• Speakers: Distribute sound evenly across the venue.
• Mixers: Balance audio levels and inputs.

Audio Mixers

Audio mixers manage multiple audio inputs, balancing levels and ensuring clear output. Important specifications are:

• Number of Channels: 8 to 32 channels
• Built-in Effects: EQ, reverb, delay
• Connectivity Options: USB, Bluetooth, XLR

Chart: Distribution of Conference Audio Equipment Costs

3. Web Conference Equipment

Web conferencing equipment has become crucial with the rise of remote work and virtual meetings. This equipment includes:

Webcams

High-definition webcams ensure clear video quality. Features to consider:

• Resolution: 1080p, 4K
• Field of View: Wide-angle lenses
• Built-in Microphones: Reduces the need for separate audio input devices

Microphones

Standalone microphones improve audio quality over built-in options. Types include:

• USB Microphones: Easy to connect and use.
• Lavalier Microphones: Small and discreet for personal use.
• Condenser Microphones: High sensitivity and quality for professional use.

Headsets

For clear audio communication, headsets with microphones are used. Important features:

• Noise-Cancellation: Reduces background noise.
• Comfort for Long Use: Padded ear cups and adjustable headbands.
• Wireless vs. Wired Options: Provides flexibility based on user preference.

Web Conferencing Software

Software platforms facilitate virtual meetings. Key features:

• Max Participants: Supports large groups.
• Screen Sharing: Enables sharing of presentations and documents.
• Breakout Rooms: Allows for smaller group discussions.
• Integration: Compatible with various productivity tools
